Van Den Hul D102 III XLR to XLR Balanced Interconnects

Van Den Hul D102 III XLR to XLR Balanced Interconnects

• Available in 0.8m and 1.0m lengths, other lengths to order

XLR version of the award-winning Van Den Hul D102 MkIII interconnect. Triple Hybrid with a very high screening factor. Pure, clean, 3-dimensional and with a very high resolution. The Van Den Hul D102 III cable improves the quality of signal transmission by performing electrical bridging on a micro scale and by converting the external magnetic field close to the conductors into an electrical signal again. Famous yellow Hulliflex jacket.

Features:

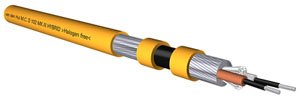

• Triple screened twin core (Balanced)
• Conductor Material: HYBRID: High purity dense Silver coated high purity Matched Crystal OFC + Linear Structured Carbon® saturated layer(s)
• Design Purpose/Application Area(s): Balanced and unbalanced audio interconnect
• Eff. Conductor Ø/Eq. AWG No./Strands: Cores: 0.31 mm² / Cores: ~AWG 22 / Cores: 40;
• Screen: 180
• External Diameter: 7.25mm
• Resistance 20°C/68°F: Cores: 5.5 Ohm/100 m.; Screen: 0.62 Ohm/100 m.
• Capacitance: Core-core: 37 pF/m.
• Characteristic Impedance: ~110 Ohm (in balanced configuration); Allows AES-EBU standard digital audio transmission
• Insulation/Dielectric Strength/Test Voltage: Cores: PE foam; Jacket: HULLIFLEX®/300 Vrms min.
