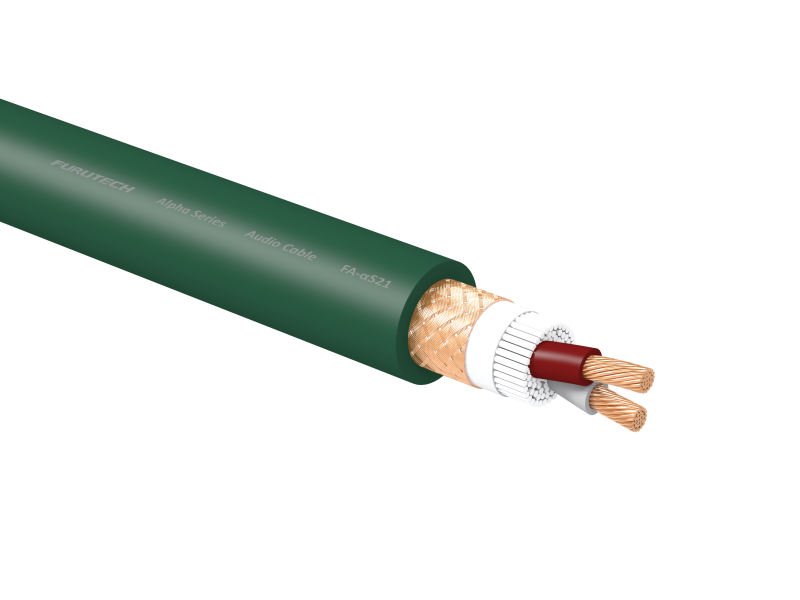

Furutech FA-αS21 Interconnect Cable (Sold Per 0.5m)

Max. Conductor Resistance: Ω／km 24 (JISC3005 6 20℃)
Min. Insulation Resistance: MΩ‧m >100 At 1000V 20℃
CAPACITANCE: PF/M 57.4 at 1KHz
IMPEDANCE : Ω 53.22 at 10 MHz
INDUCTANCE: uH/M 2.0 at 1KHz
Dielectric Strength: V／1 min. AC 1000 (JISC3005 8)

FEATURES

Furutech’s α (Alpha) OCC is one of a select few of conductors that Furutech engineers have found to excel in sound reproduction. α (Alpha) OCC is made with high-purity oxygen-free copper using a special casting process. Unlike regular OFC, almost all of the impurities of this high-purity OCC have been removed at the micron level through a special casting process unique to Furutech.

SPECIFICATIONS

Conductor Material: α(Alpha) OCC
Construction（pcs／mm): 30pcs / ψ0.18 mm
Insulation Material: Audio grade PP (Red, White)
Diameter: 2.46mm
Twisting Method : 2 Cores Twisted Together
Filler Material: Audio grade damping cotton
Barrier Layer Material: Stabilizer Paper Tape (Wrap)
Shield Material: ψ0.12mmα (Alpha) Conductor wire braid
Sheath Material: Audio grade Flexible PVC (Dark Green)
Nom. Thickness: 1.0mm
Overall Diameter Approx.: 8.0mm
