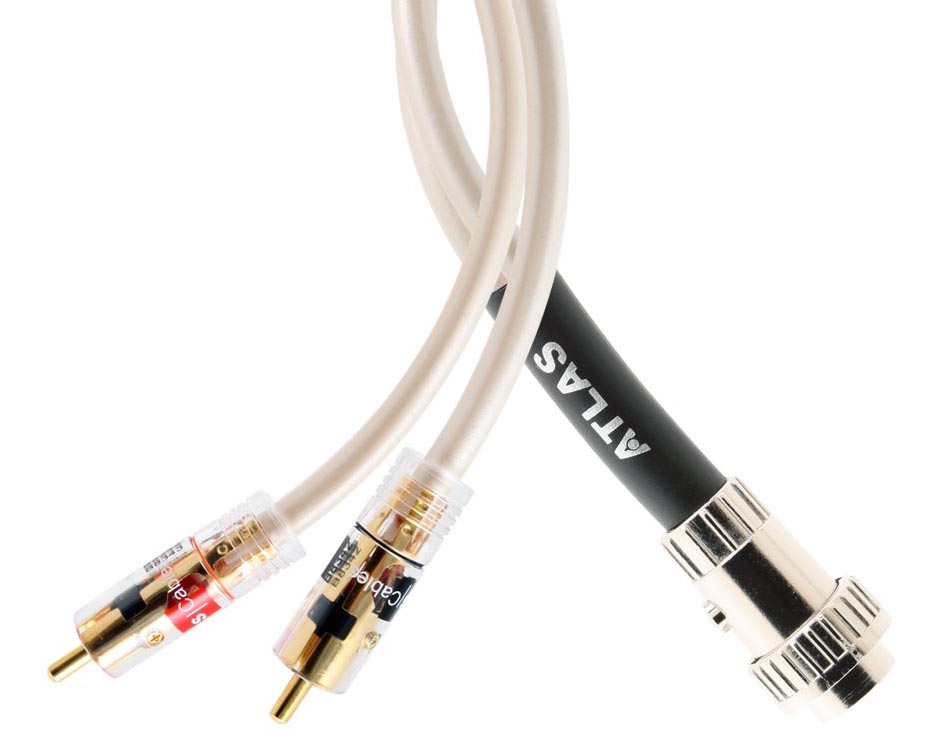

Atlas Element DIN to Integra RCA Interconnect
A symmetrical interconnect with a wide-band, neutral sound, designed to be an excellent upgrade cable for equipment utilising DIN socketry.
Based on our multi-award winning Element Integra I/C, the Element DIN interconnect utilises a shielded four-core construction providing excellent immunity to interference and noise.
The Element DIN to Integra RCA is fitted with a 5 Pin ‘locking’ DIN connector.
NB. Atlas 180° DIN plugs are wired as follows by default: Pin 2 = Ground; Pin 3 = Left, Pin 5 = Right. We also offer 4&5 pin variants suitable for Naim equipment. If you’re unsure, or require a different configuration, please contact us. Always check with your equipment manufacturer’s instructions before ordering.
The Element range includes other analogue interconnects, complementary USB & digital interconnects and speaker cables.
Specifications:
| Construction | 4 core plus screen |
| Material | OFC |
| Dielectric | XLPE |
| Screen | Braid OFC, 90% |
| Capacitance | 63.03 pF/m |
| Inductance | 0.3735 µH/m |
| Resistance | 0.1612Ohms/m |
| Impedance | 77.05 Ohms/m |
| Outside Diameter | 6.0mm |
