Vivid Audio Oval B1 Speakers

Vivid Audio Oval B1 Speakers

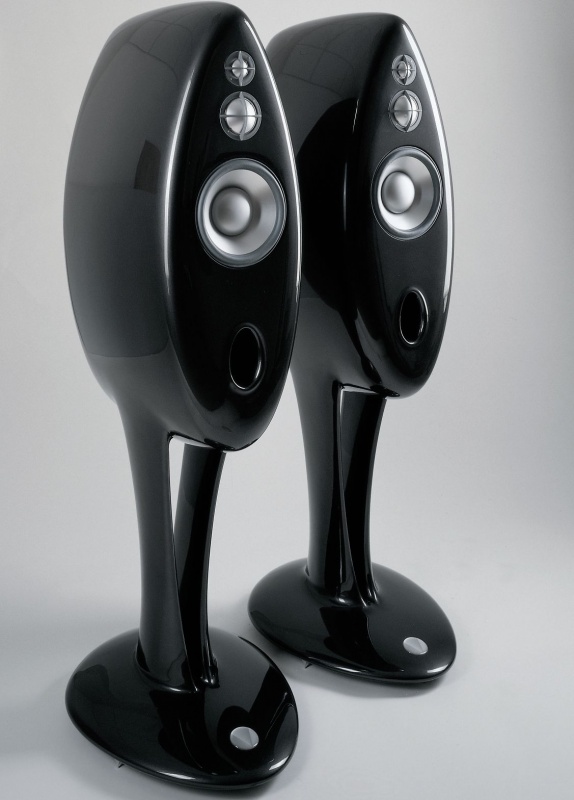

Vivid Audio B1 Loudspeaker – The Vivid Audio B1 is a mid-sized, floor standing model. This is not your typical square box design, and for a good reason too. Every aspect and component of this loudspeaker has been scrutinized and reinvented to create a dynamic and boxless sound.

As with other Vivid Audio loudspeaker designs, this unique cabinet is a result of its function. Designed to be virtually invisible, free from distortions and reflections as typically found in traditional speaker enclosures. The B1 features Vivid Audio’s patented drivers coupled to tapered tube absorbers for reaction cancelling.

Configuration: 3 & 1⁄ 2 way vented cabinet
Cabinet material: Complex loaded carbon fibre filled polymer
HF – D26 – 26mm metal dome unit with Tapered Tube loading
MID – D50 – 50mm metal dome unit with Tapered Tube loading
LF – C125 – 2 x 158mm metal coned unit (coupled)
First D26 Break Up mode: 44,000 Hz
Sensitivity: 89dB @ 2.83Vrms and 1.0 meter on axis
Nominal Impedance (Ohm ): 4
Frequency range – 6dB points: 35 – 36,000Hz
Frequency response: 39 – 33,000 Hz +/- 2dB on reference axis
Harmonic distortion (2nd and 3rd): < .0.5% over frequency range
Cross over frequencies (Hz): 100, 900, 4000
Power handling (music program) watts rms: 300
Loudspeaker dimensions (H, W, D cabinet, D base) mm: 1095, 265, 375, 420
Net weight (kg): 38
Shipping dimensions (H, W, D) mm: 1250, 430, 530
Shipping mass (kg): 50

Every Vivid Audio loudspeaker cabinet is hand finished using an elaborate process to ensure the very best aesthetics and finish quality.

Vivid loudspeakers come in two standard colours: pearl white and piano black. But our range of possible colours is actually limited only by your imagination. In keeping with such an individual and unique speaker, we also offer a special service that can match any colour you specify...
