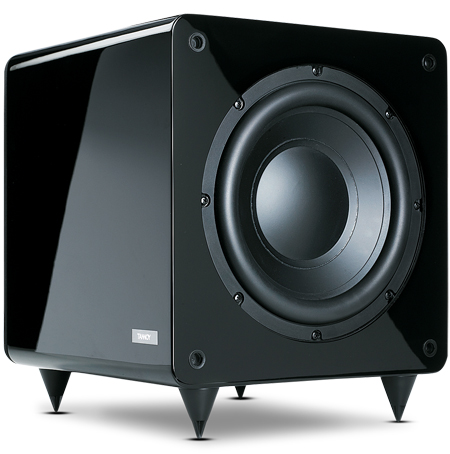

Tannoy TS 2.10 Subwoofer
Tannoy TS2.10 is a compact active subwoofer delivering class-leading bass response and performance while representing stunning value for money.
Designed to excel in attack, dynamics and power, the TS2.10 uses a powerful digital amplifier as well as two large, long throw drivers which allow it to output extremely fast, rhythmic and deep bass.
The TS2.10 uses the latest class D digital amplifiers within its double thickness cabinet, running in a highly efficient bridge mode - capable of delivering up to 500W RMS of deep bass power.

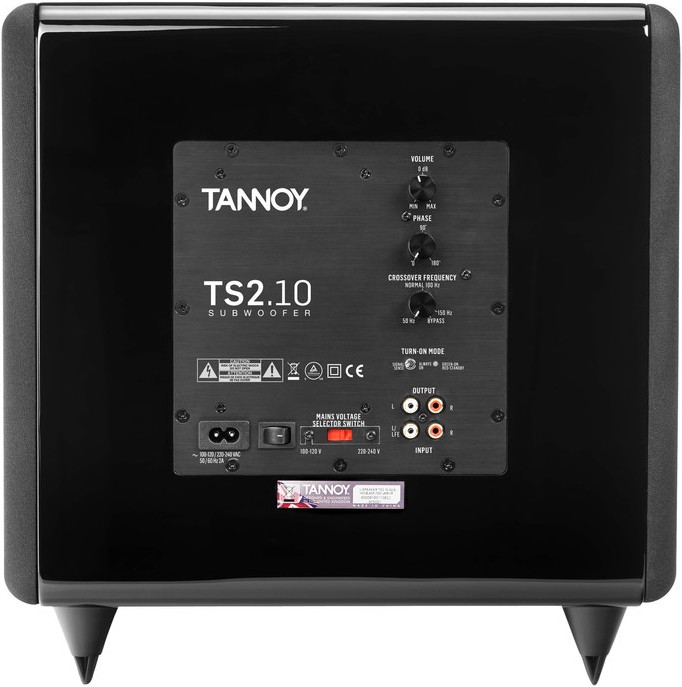

The TS2's high-speed Digital Signal Processing (DSP) engine controls user adjustments and bass levels. These simple rotary controls allow you to adjust roll-off frequency, phase and gain which makes the TS2 subwoofers as simple to setup as they are to operate. The automatic power on/off feature eliminates the need to access the TS2's controls once setup and ensures the most power-efficient operation possible.
TS2.10 double driver configuration dramatically increases cone surface area and reduces cabinet vibration. The twin 10” drivers offer a similar cone surface area to a subwoofer with a single 15” driver, yet the TS2.10 remains no physically larger than a typical 10” subwoofer.
This elegant solution ensures the TS2 subwoofers are compact enough for easy placement yet pack a punch much larger than their physical size. Each high-excursion driver uses a light yet stiff multi-fibre cone with butyl rubber roll surround to deliver lightening bass speed and low frequency depth.
Equipped with potent 300W RMS class D bridge mode amplifier, TS2.10 is bristling with power and technology. A Tri-State Pulse Width Modulated DSP is used to adjust crossover frequency, phase and gain control in the digital domain eliminating analogue filter circuitry from the signal path. TS2.10 delivers ultrafast bass and potent LF effects right down to a class-leading 22Hz.
The TS2.10 cabinet is built from heavyweight 25 mm MDF throughout, substantially reducing cabinet colouration and adding valuable extra mass for stabilisation. Tannoy’s polymer cone feet are deployed on the TS2.10, offering the greatest stability across a wide range of floor surfaces from hard laminates to carpet.
Each cabinet is meticulously hand-finished in discreet satin vinyl or high-gloss paint in bright white or piano black. The hard-wearing paint is hand polished to a mirror finish. A pair of full-width removable grilles is supplied for those wanting to keep the TS2.10’s impressive twin drivers concealed.
|Enclosure: Closed box, side firing |
Driver: 250mm active + passive ABR
Output power: 300 W RMS
Frequency response: 24Hz (-6dB)
In: 2x phono line level, LFE or stereo
Out: 2x phono line level, LFE or stereo
Input Filter: 50 - 150Hz
Crossover: 2nd order low pass (bypass)
Variable phase control: 0 - 180 degrees
Operation Mode: Signal sense/ Always on
Dimensions (HWD): 390 x 380 x 328mm
Volume: 23.1 litre (0.82 cu. ft.)
Weight: 14.5 kg (31.9 lbs)
