Revel M126Be Loudspeakers
Zoom  Zoom
Revel M126Be LoudspeakersRevel M126Be LoudspeakersRevel M126Be LoudspeakersRevel M126Be Loudspeakers

Revel M126Be Loudspeakers

£3,999.00
£3,332.50 Exc. VAT |


|


Please note : We can only supply REVEL products to the UK

Revel M126Be Loudspeakers

m126be

The Revel Performa M126Be is a powerful and elegant 2-way, 6.5-inch bookshelf loudspeaker that sets a new world standard in performance. Using the award-winning Performa3 M106 as the starting point, virtually every component was re-engineered to extract the finest details, the highest level of performance, and the most emotion possible. Featuring an all-new Beryllium tweeter, the M126Be delivers unparalleled detail and accuracy with an expansive and cohesive soundstage.

At the heart of the Revel Performa M126Be's immaculate sound lies a 1-inch beryllium tweeter driven by massive 85mm dual ceramic magnets. The powerful tweeter and 5th-generation ceramic-coated, cast-aluminum Acoustic Lens waveguide seamlessly integrate with the directivity of the 6.5-inch Deep Ceramic Composite (DCC) aluminum cone woofer, yielding greater efficiency, less compression, improved dynamic range, reduced distortion, and increased power handling. PerformaBe crossover networks utilize all film capacitors and air core inductors in the midrange and tweeter circuits. These premium components allow Revel's world-class engineers to extract nuances and details from music that would otherwise be lost. Combined with traditional Revel high-order crossover slopes and proprietary Acoustic Lens waveguide geometry, transducer integration is seamless.


THE BEAUTY OF BERYLLIUM

Beryllium - Element 4 on the Periodic Table - is a rare earth metal that is renowned for its remarkable physical properties that make it the ideal material for a high-frequency transducer. Compared to aluminum and titanium tweeter diaphragms, Beryllium offers 4.5 times the stiffness and three times more damping, and does so at only half of the weight.

ELEGANT DESIGN

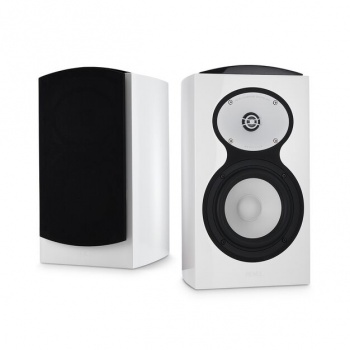

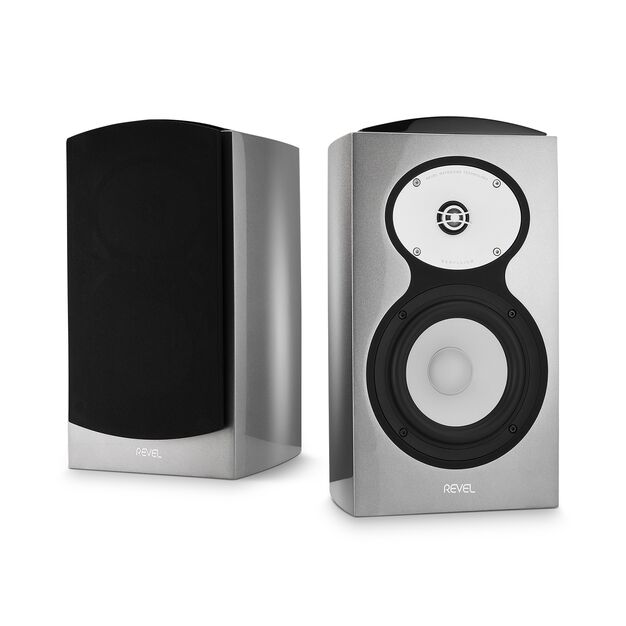

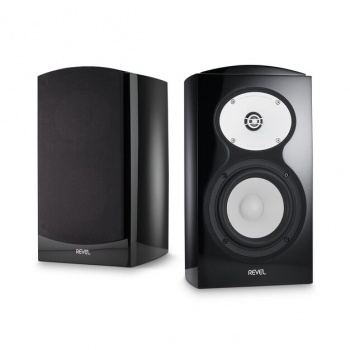

M126Be top panels are painted in stylish metallic black with raised electroform badging. The speakers are available in a choice of four high-gloss finishes for seamless integration into any décor: Black, White, Walnut, and Metallic Silver.

HIGHLIGHTS:

  • 1-inch Beryllium Dome Tweeter
  • High-order Crossovers with Film Capacitors and Air Core Inductors
  • 5th-generation Acoustic Lens Waveguide
  • Magnetically Attached Grilles
  • DCC Cone Midrange and Woofers
  • 4 Premium High-gloss Finishes Available



General Specifications

High Frequency Driver Components: 1" Beryllium dome with acoustic lens waveguide
Low-Frequency Driver Components: 6.5" Deep Ceramic Composite (DCC) Aluminum Cone with cast frame
Frequency Response (-6dB): 54Hz - 44kHz
Low-frequency extension: 40 Hz (-10dB); 46 Hz (-6dB); 53 Hz (-3dB)
Recommended Amplifier Power: 50 - 150 Watts
Crossover Frequencies: 1.7kHz
Nominal Impedance: 8 Ohms
Sensitivity: 86dB (2.83V @1M)
Finishes: High-gloss Black, White, Walnut and Metallic Silver
Dimensions (H X W X D): 15.2"x 8.3" x 10.3" (386 x 211 x 262mm)
Net Weight: 22 lbs / 9.97kg
