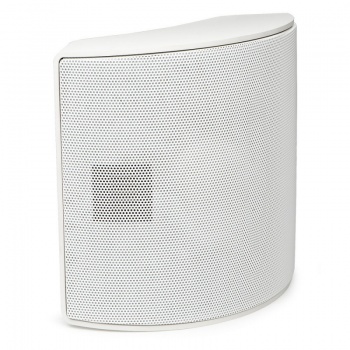

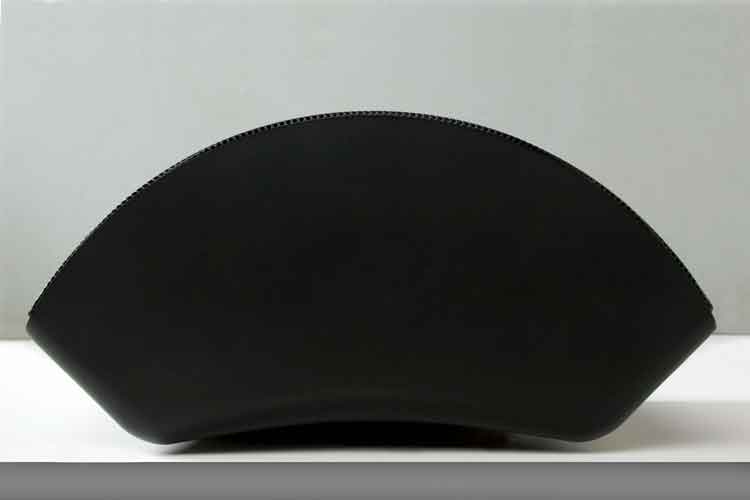

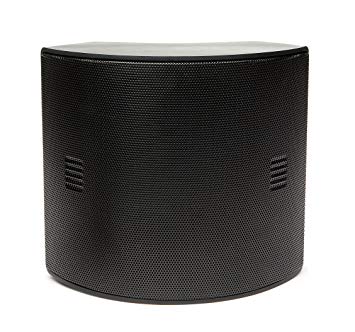

Martin Logan Motion FX Speaker
Zoom  Zoom
 Martin Logan Motion FX SpeakerMartin Logan Motion FX Speaker

Martin Logan Motion FX Speaker

£795.00
£662.50 Exc. VAT |
Out of stock

|
Finish:

Martin Logan Motion FX Speaker

Dedicated wide dispersion surround speaker with dual Folded Motion® tweeters and Folded Motion Cascading Bass-Reflex Port for deep, detailed bass response. Voice-matched with MartinLogan ESL speakers.

Engineering Genius

What makes the Motion Series sound so amazing? MartinLogan's dedicated in-house engineering team started by utilizing and refining the most advanced, compact technologies and combining them with innovative engineering. The result is an emotionally engaging sound that rivals (and most times trounces) traditional loudspeakers of similar size and price.

Folded Motion® Tweeters

The signature Folded Motion tweeters utilize extremely low mass diaphragms that "squeeze" air, and require significantly less excursion than the typical 1-inch dome tweeter, which drastically minimizes distortion while providing a lightning fast response time. The increased surface area also provides a wide, yet controlled sound dispersion to create a realistic and carefully etched sound stage.

Frequency Response

70–25,000 Hz ±3dB

Recommended Amplifier Power

20—160 watts per channel

Horizontal Dispersion

160°

Vertical Dispersion

80°

Sensitivity

91 dB/2.83 volts/meter

Impedance

4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.

Crossover Frequency

4500 Hz

High Frequency Transducer

Two 1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm

Low Frequency Transducer

5.25" (13.3cm) paper cone with cast aluminum basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes. Folded bass reflex port.

Components

Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/current protection.

Inputs

Push style with banana jacks

Weight

9.5 lbs. (4.4 kg)

Dimensions

11.1" x 12" x 6 "
(28.2cm x 30.5cm x 15.2cm)
