Mission QX-S Series QX-4 Loudspeakers
Mission QX-4 Speakers are the mid-level floor standing speaker models in the new QX range, with dual 6.5" long fibre composite cone bass drivers coupled with a 1.5" textile ring dome tweeter and incorporating a two-way design.
Inverted Driver Geometry
Mission QX-4 utilises Mission’s classic IDG (Inverted Driver Geometry) driver format. By positioning the treble unit below the bass/midrange driver, the length of the path is equalised so the sound waves coincide at the listener’s head height. This principle improves ‘time alignment’.
Dual Ring Radiator
Mission’s exclusive ‘ring dome’ uses a woven, textile material formed in a double ring arrangement. The combination of textile dome and multi-ring surround applied optimum stiffness to the maximum radiating area. New ‘ring dome’ treble unit offers high levels of musical detail with low distortion - the usual dome cavitation effects are completely avoided
Mission DiaDrive System
Twin rear cavity non-reflecting design vents back pressure from the diaphragm to a twin rear cavity, reducing resonance and maintaining a wide operating bandwidth. Natural midrange quality with superb bass transient impact is provided by a seam-free curvilinear cone formulated from a mixture of soft pulp and acrylic fibre specially designed for midrange clarity and lucidity.
DiaDrive Twin Core Design
Backing the curvilinear front cone is a stiff, conical support with increased area of contact with the voice coil for outstanding transient impact. The drive unit surround and fixing screws are cleverly concealed behind the unique comb-tooth trim design giving a highly technical look to the front face of the speaker.
Aluminium Top Plate
The inclusion of aluminium top and bottom plates to the cabinet not only gives an attractive, high tech appearance to the speakers but also enhances sound quality. The added mass and stiffness reduces resonance from the cabinet walls, lowering colouration and distortion. The new Ribbon-Like slot port design features ribs to enhance airflow and avoid the 'chuffing' so often heard from bass-reflex ports. The result is enhanced low-frequency performance with lower distortion.
The Design Concept

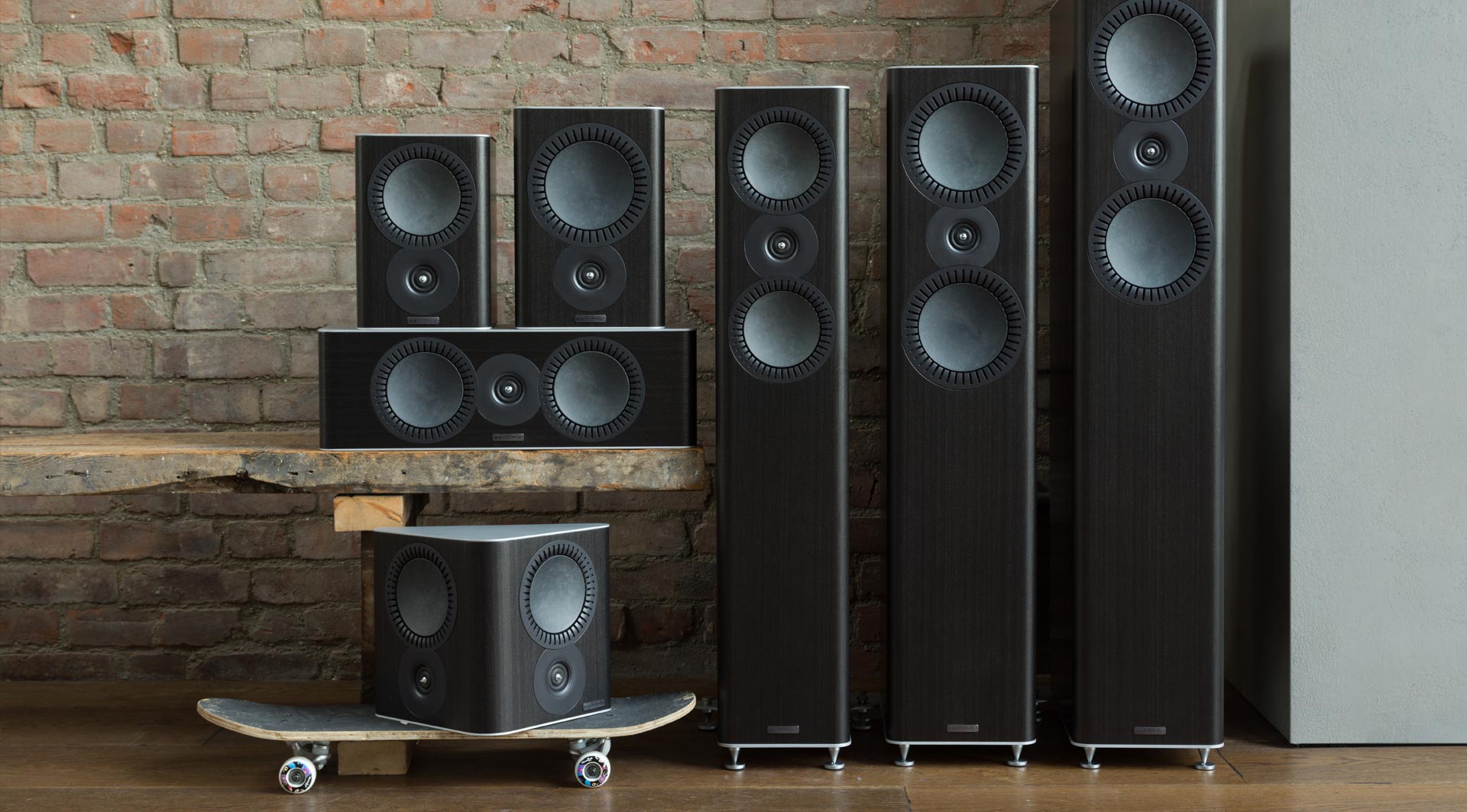

QX series was designed to marry advanced engineering with a highly attractive and unique design that lets the speakers fit perfectly into the modern home. The front panel appearance hints at the advanced technology inside the speakers whilst presenting an attractive face to the listener. Five core hi-fi models; 2 bookshelf designs and 3 floorstanding speakers are joined in the Mission QX range by a dedicated centre speaker, two-way surround speaker and selection of subwoofers.
Mission Legacy
Mission brings its 40 years of audio expertise to this exciting new QX speaker range which offers many additional features making these speakers an excellent choice for all levels of hi-fi and home cinema integration. Advanced DiaDrive cone system features a front inverted dome cone which delivers smooth response, driven by secondary sub cone to transfer maximum transient impact from the motor system.
