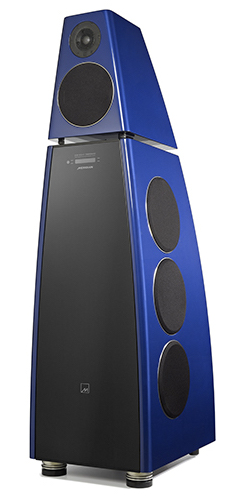

Meridian DSP8000SE Digital Active Loudspeakers
Every aspect of our flagship DSP8000.2 design is in the service of reproducing music. The unique construction of a separate head provides convincingly natural voice reproduction, while the discrete bass cabinet provides effortless deep bass.
Its cabinet material, “Meridium,” was carefully chosen to have no influence on its reproduced sound. Even its beautiful lacquer finish enhances its performance. The DSP8000.2, like a fine musical instrument, is designed for a lifetime of enjoyment.
GRACE UNDER PRESSURE
The DSP8000.2’s engineered curved cabinet provides a graceful and perfect home for the high performance electronics. Designed as a complete system, the DSP8000.2’s five independent amplifiers are tuned precisely for the bandwidth and drive units they are attached to. This allows the DSP8000.2’s to play at concert levels without stress while achieving an efficiency that lesser designs strive to attain. Finished as standard in high-gloss black or white, the DSP8000.2 is also available in any of the 270 Meridian Select colours.
MASTER QUALITY AUTHENTICATED (MQA)
from the original studio master recording as approved by the creative team, MQA combines an advanced new digital sampling technology that captures extremely high frequency timing and detail in an audio signal with an equally novel system to “encapsulate” that data into a form for delivery using any lossless file format or streaming. The listener’s decoder reconstructs the entire original signal, bringing up an indicator confirming that what they are hearing is exactly the same as the original master. Without the decoder, the listener enjoys CD quality reproduction. Its most advanced form, “MQA Studio”, uses the technology in the studio to generate an even higher quality master recording as the source.
DIGITAL SIGNAL PROCESSING
As pioneers and leaders in the field of Digital Signal Processing (DSP) technology, Meridian is able to deliver your music authentically to recreate the passion and involvement of your musical moments. Power-efficient, active DSP crossovers are individually tailored to distribute music to each speaker, bringing your music to life.
Traditional audio systems often require large, expensive cables to maintain their performance. Meridian's SpeakerLink uses an “Ethernet style” cable that delivers pristine digital sound and control down a single cable between Meridian components. The result is simple, unobtrusive, and cost-effective cables that are easy to install.
Loudspeaker enclosures often vibrate, colouring the sound, making it less lifelike. Our most advanced loudspeakers use a cabinet construction material unique to Meridian: Meridium features highest-grade laminated plywood layers bonded to an aluminium core, allowing the loudspeaker to reproduce music accurately without adding its own sound.
TRIPLE FIFO BUFFERING
Each sample of a digital recording must remain evenly spaced in time. Unfortunately, timing can vary, especially when reading discs. This is “jitter”, degrading music's sense of space and diminishing realism. Meridian's multiple “First In, First Out” buffering system minimises jitter, ensuring perfect timing and improved clarity. You enjoy a clearer feeling of the instruments and their interrelationship.
MERIDIAN HIGH RESOLUTION (MHR)
MHR was the first approved encryption method for transferring high definition digital audio between components. Previously, it had to be in the analogue domain, reducing quality. MHR allows secure movement of high resolution digital audio within a Meridian system, without compromise, improving quality by reducing cyclic repetition.
MERIDIAN APODISING FILTER
Filters are critical in digital audio. Commonly they introduce distortion and harshness because of "pre-ringing". Early digital recordings suffer from harshness too, due to primitive filters. After painstaking research, Meridian developed a special filter that avoids pre-ringing, so it can be steeper, cleaning up the effects of early filters. The result: a better, cleaner sound from recordings old and new.
ENHANCED BASS ALIGNMENT (EBA)
High or low, all sounds travel at the same speed, so all the sounds from a live musical event arrive at your ear at the same time, whatever frequencies they contain. Loudspeakers, however, have a problem when playing low frequency sounds at the same time as mid and high frequencies – the bass arrives late, and the deeper the sound, the later it arrives. This delayed bass causes music to lose its impact and reduces the sense of the recorded space – it is often described as “boomy”.
The goal is to have time-accurate loudspeakers, where all reproduced frequencies start and end at the same time. In a loudspeaker, this timing is affected by the crossover, driver, and enclosure type. To eliminate the delay between low, and mid and high frequencies, Meridian has designed a combination of digital filters and time delays for the mid and high frequencies. This solution enables the mid and high frequencies to “wait” for the low frequencies, delivering perfectly-timed music playback.
Mid and high frequencies are delayed to time-align them, while upper bass is delayed with a special type of patented filter. These features must be implemented entirely in the digital domain, making them impossible to achieve in any passive or analogue-active loudspeaker design.
Enhanced Bass Alignment provides accurate time-alignment of the drivers in the system, delivering exceptional imaging and a clear, transparent, more life like sound.
