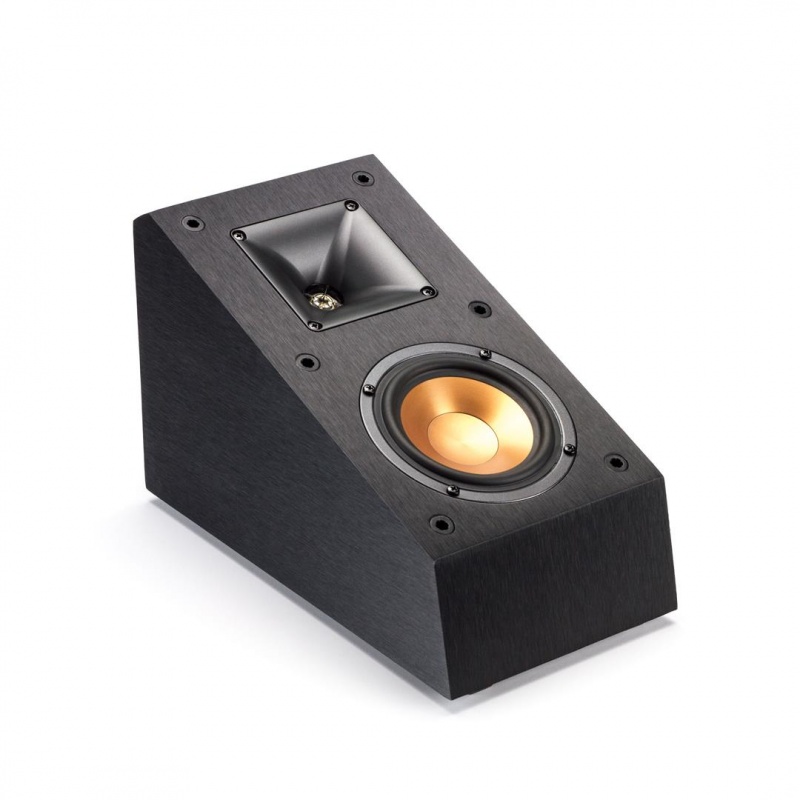

Klipsch R-14SA Dolby Atmos Upfiring Speakers
Features exclusive Tractrix Horn technology
Contemporary aesthetic with absolute durability
Sold as pair
The R-14SA Dolby Atmos® enabled elevation speaker is a fantastic complement to our Reference family. Set this height channel on top of your existing floorstanding speaker to complete a hemisphere of rich, detailed sound. Your music and movies will never sound the same. In addition to delivering the Klipsch Dolby Atmos sound, the R-14SA Elevation Speaker's versatility allows it to become a surround sound speaker angled perfectly on your wall.
TAKE YOUR MOVIES AND MUSIC TO NEW HEIGHTS
The R-14SA Dolby Atmos® enabled elevation speaker is a fantastic complement to our Reference family. Set this height channel on top of your existing floorstanding speaker to complete a hemisphere of rich, detailed sound. Your music and movies will never sound the same.
90x90 TRACTRIX HORN
Our exclusive Tractrix® Horn technology and aluminum tweeters deliver the most impressive high-end response and greater extension, enhanced imaging and powerful dynamics. This creates the cleanest, most natural sound possible.
LINEAR TRAVEL SUSPENSION (LTS) TWEETER
A Linear Travel Suspension minimizes distortion for enhanced, detailed performance. LTS Tweeters have been a hallmark of previous Reference lines, as well as our flagship Klipsch Palladium series, making it a core component of some of the best speakers in the world.
SPUN COPPER IMG WOOFERS
Injection Molded Graphite (IMG) woofers are exceptionally light while being extremely rigid–providing remarkable low frequency response, with minimal cone breakup and distortion. When paired with the Tractrix Horn-loaded LTS tweeter, it provides speaker efficiency highest in its class.
MDF CABINET WITH BRUSHED POLYMER VENEER FINISH
Contemporary aesthetic with absolute durability that results in a seamless integration into any décor.
STRONG, FLEXIBLE, REMOVABLE GRILLE
Adds a rich, refined look that is acoustically transparent.
Adds Dolby Atmos® experience to any floorstanding/bookshelf speaker
Can be used as surround speaker
3/4" Linear Travel Suspension Aluminum Tweeter
4" Spun Copper IMG Cone Woofers
90x90 Hybrid Tractrix Horn
MDF Cabinet with Brushed Polymer Veneer
Strong, Flexible Removable Grille
Dimensions: 7.25” x 6” x 11.25"
Sold as pair
Frequency Response: Conforms to Dolby Atmos Specification
Sensitivity: Conforms to Dolby Atmos Specification
Power Handling (Cont/Peak): 50W / 100W
Nominal Impedance: 8Ω Compatible
Crossover Frequency: 2kHz
High Frequency Driver: 3/4" Aluminum LTS Tweeter with Hybrid Tractrix Horn
Low Frequency Driver: 4" Copper IMG Cone Woofer
Enclosure Material: MDF
Enclosure Type: Acoustic Suspension
Inputs: Single Binding Posts
Height: 7.25" (18.4 cm)
Width: 6" (15.24 cm)
Depth: 11.25" (28.56 cm)
Weight: 5.5 lbs (2.5 kg)
Finish: Brushed Polymer Veneer
Built From 2017
