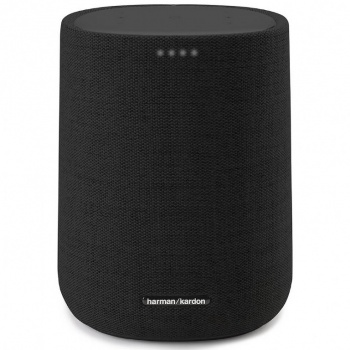

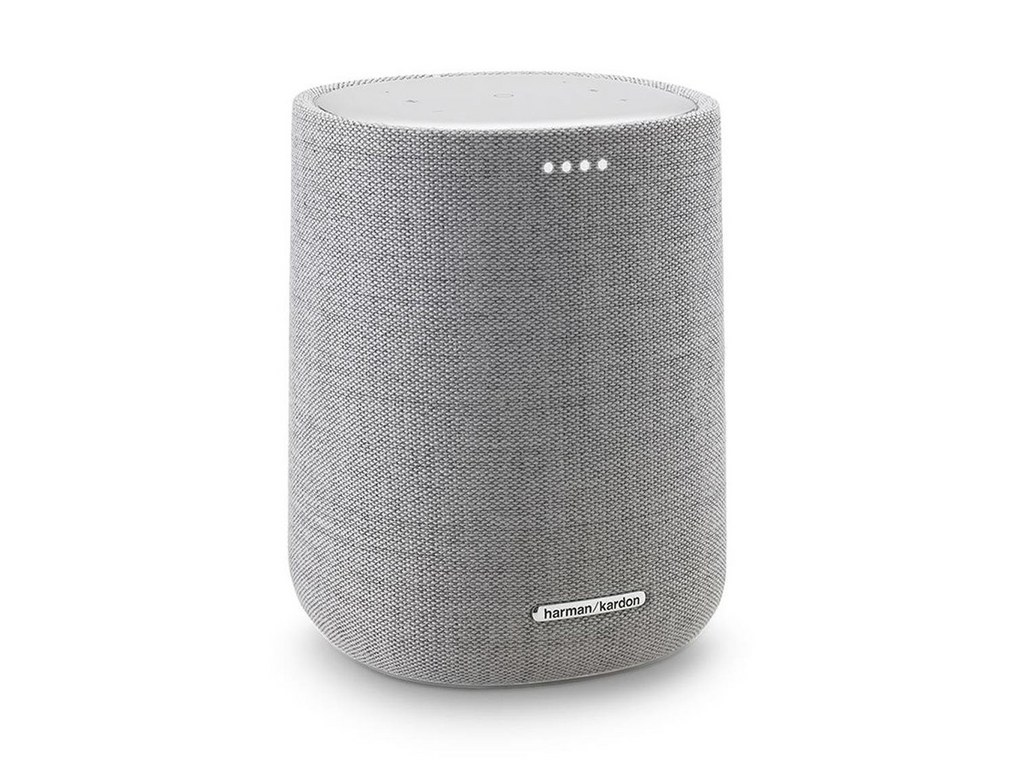

Model NameCitation ONE
Power Supply100-240V – 50/60Hz
Bluetooth® version4.2
Bluetooth transmitter frequency range2402 – 2480MHz
Bluetooth transmitter power<5dBm
Bluetooth transmitter modulationGFSK,π/4 DQPSK, 8DPSK
Wireless network802.11 a/b/g/n/ac (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range2412 – 2472MHz (2.4GHzISM Band, USA 11 Channels, Europe and others 13 Channels)
2.4G Wi-Fi transmitter power<20dBm
2.4G Wi-Fi modulationDBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM
5G Wi-Fi transmitter power<23dBm
5G Wi-Fi modulationQPSK, BPSK, 16QAM, 64QAM, 256QAM
5G Wi-Fi transmitter frequency range5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
NoteCITATION ONE is intended to be used for streamingmusic. A consumer can streamBluetooth audio to the speaker. A consumer can connect their speaker to the localWi-Fi Network and streammusic with Google Chromecast. In addition, the speaker will work with Google Home. This product is designed to be instantly on and ready to playmusic at amoment's notice, therefore, the Bluetooth andWi-Fi connectionmust remain active at all times to ensure proper operation CITATION ONE is in compliance with the European Union energy legislation. CITATION ONE complies with European Commission Regulation (EC) No 1275/2008 and (EU) No 801/2013 as a networked equipment with high network availability (HiNA equipment and equipment with HiNA functionality). Power consumption Standby
