MS HD Power 13A UK Mains Plug
- Available in 4 different finishes, all with every contact surface plated in the chosen finish.
- Patented UK 3 pin mains plug with polished pins, securing up to 16mm diameter cables and up to 4mm power and earth conductors internally.
PLEASE SEE THE LATEST REVIEW
This high quality UK 13A 3 pin plug has been designed to be used with audio equipment power cables for the best power transmission with no compromises. All the electrical parts (polished pins and all internal parts) are made from premium quality copper, the Fuse Clips are made of high spring rate Phosphor Bronze - and supplied fitted with a high quality 13A silver plated fuse.
The patented design allows for easy cable fitting (instructions provided) and the ease of cable fitting cannot be under estimated, some other brands are difficult to wire up with thicker cables.
The plug casing is manufactured from nylon material, offering durability, high insulation, light weight and good looks.
The heavy duty mains wire-clamps design ensure an air tight connection to ensure perfect power transmission and also protect the power cable wires from damage over time - inferior plugs secure the cables by the grub screws twisting down onto the cable directly and can be prone to material 'creep' over time, causing damage.
- Compliance with: BS-1363 (plug), BS-1362 (fuse).
- Mains voltage rating: 200~240 VAC x 13A
- Size (Housing Only): Width 68mm, Depth 33mm, Height 68mm (inc. cable clamp)

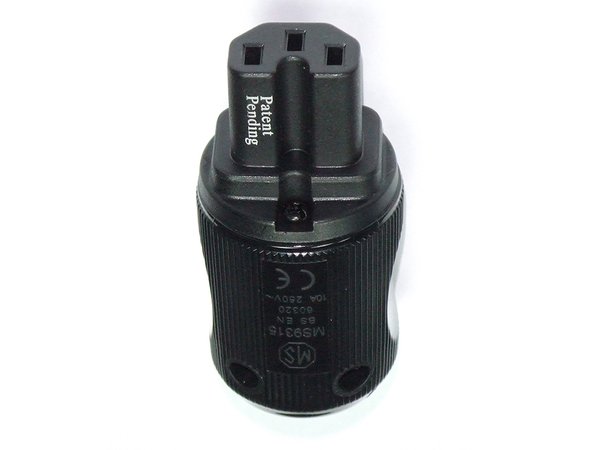

MS HD Power MS-9315 IEC Plug
This high quality IEC mains connector by MS HD Power is designed for use with audio equipment and will accept large size power cables, up to 16mm diameter - and up to 4mm dia. wires internally. The wires are held in heavy duty clamps to ensure a perfectly air tight joint (and not held with a grub screw, as in many inferior products plugs). It is very easy to wire up and there are instructions included with the plug, which comes in a display case package.
All the electrical parts are plated in the finish of your choice above as are the all important polished phosphor bronze extra strong spring clips, for a perfect air tight mating with the IEC socket on your audio equipment.
The casing is manufactured from a black nylon material, making it very durable, highly insulating and light in weight. It has a ribbed surface with two recesses to enable easy fitting and removal from socket.
Fully complies with BS-EN-60320 and patent Pending.
- Size: total length, 75mm x 38mm diameter
