WBT-0152 Nextgen RCA Connectors
WBT has continued to produce connectors specifically for the high-end audio industry for over 20 years. The product line has expanded to include functionally unique features that truly elevate them to the top. WBT products are very popular with audio cable and equipment manufacturers worldwide and can be found as standard equipment on many well respected brands.
The WBT range of audio connectors are well proven to offer superb sound quality when connected to even the most basic cables; step up the cable quality and the results can be astonishing.

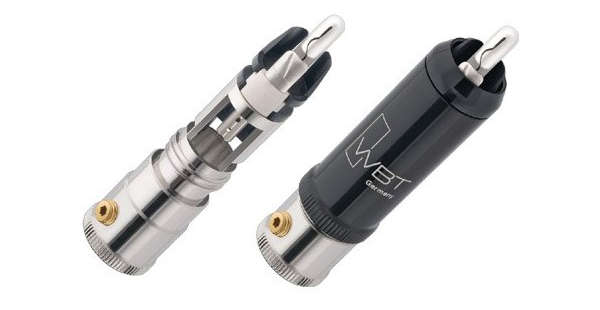

The basic element having influence on the sound quality of WBT-0152 Cu / Ag is the Central Contact Unit which has been developed exactly the same way as for the plug model WBT-0110 Cu / Ag: minimal mass of signal conductors made of fine copper or silver. The signal conductors are passivated and thus best possibly protected against corrosion or migration which would affect the contact quality.

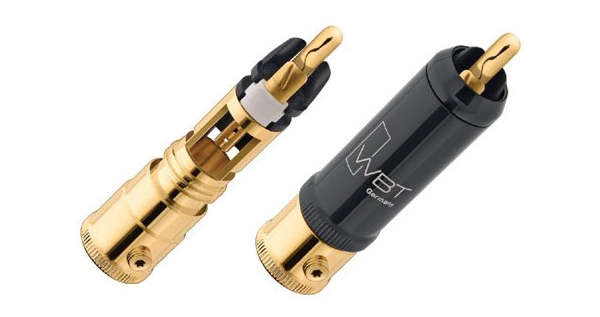

Eddy currents occur in metal components close to where alternating currents flow. These currents can result in major signal distortions. The WBT-0152Cu is designed in such a way that eddy currents do not occur.
The contact elements of the plug are made of high-purity copper, with nickel-free plating to ensure high signal transmission and prevent oxidation and impairment to the contact.
The clamping mechanism, which works in the same way as the chuck device in a drill, firmly clamps the outer contact against the RCA socket. The high clamping pressure not only guarantees a secure connection but also minimises transition resistance. The pressure wedge between the contact and the sleeve is made of plastic, which means that the sleeve is completely insulated and cannot influence the signal. In addition, any size variation in the outer contact of a socket is compensated for, thereby ensuring a perfect fit.
The clamping sleeve is designed with two sections so that the front section moves freely as the rear section is turned. This eliminates the risk of torsional strain on the contact elements. The central pin is slotted and ideally formed thereby giving a firm yet elastic contact that ensures lasting and reliable electrical connection with absolutely minimal transition resistance.
A Torx screw provides reliable cable strain relief.
Cable diameter: up to 10.8 mm.
