Pro-Ject Juke Box E Turntable - With Integrated Amplifier & Bluetooth
Juke Box E is a vinyl record player with integrated phono stage, a Bluetooth receiver, a pre-amplifier and a power amplifier all in one stylish, compact chassis. Requiring only a set of speakers to make a complete hi-fi system, the performance and level of convenience on offer is unprecedented for the price.
The record player itself is based on a modified version of the popular Pro-Ject Primary design. While requiring no complicated set-up, the turntable design still includes premium features like an 8.6” aluminium tonearm with sapphire bearings, Ortofon OM 5E cartridge, perimeter belt-drive operation and a low-vibration synchronous motor with reliable speed stability. To set the turntable up there’s no need to adjust the anti-skate or counter-balance settings, simply install the belt and you’re ready to spin!
Built into the turntable chassis is a premium integrated amplifier with plenty of power and dynamic sound. Boasting 50W per-channel output, the amplifier has a moving-magnet phono stage built-in, based on Pro-Ject’s coveted Phono Box technology. There’s also a wireless Bluetooth input for CD-quality streaming from a compatible smart device, and an additional Line input. So any modern source can also be added to the Juke Box E system.
Though the Juke Box E has everything you need to build a hi-fi system, it’s still possible to take the system even further with the Line and Phono outputs for either adding in a headphone amplifier (such as the Head Box S2), connecting to another larger system or even integrating an Analogue-Digital Converter (such as the A/D Box S2 Phono) for computer recording. The forward-thinking design also follows through to the overall quality of the Juke Box E.

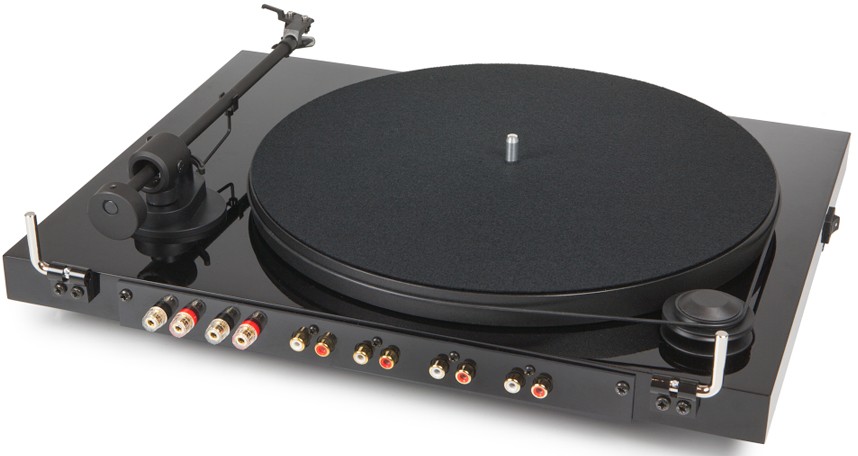

With gold-plated RCA connectors and isolated speaker terminals on the back panel, the Juke Box E carries with it a real sense of prestige. The same can also be said for the overall construction, thanks to the thick, heavy high-gloss plinth, luxury aluminium pulley, included removable dust cover, special decoupling feet and the intuitive display panel on the top-chassis.
Operation is simple thanks to the volume and input information shown on the display, and the 32-step digital potentiometer – with added push function for switching inputs – allows you to set playback at exactly your desired volume. For times when the Juke Box E is out of reach, the supplied remote control helps with switching inputs and adjusting volume, as well as accessing more sophisticated controls including Bass and Treble adjustment and a Loudness boost.
The Juke Box E delivers a true stereo hi-fi system in a box with the simplest of set-up processes. Once again, Pro-Ject Audio Systems are on a mission to make the premium hi-fi vinyl listening experience accessible to as many people as possible, and this time they’ve delivered with an entirely new concept that is sure to turn heads.
|Power Output: ||2 x 50W (4Ω) |
|Speaker Terminals |
Line Out (Fixed)
|Bluetooth (2.1, EDR) |
Line (RCA Pair)
|Phono Input: ||For Moving Magnet Cartridges |
|Replacement Stylus: ||Ortofon Stylus 5E |
|Pre-Fitted Cartridge: ||Ortofon OM 5E |
|Drive Principle: ||Belt Drive |
|Nominal Speeds: ||33/45 RPM (Manual Speed Change) |
|Speed Variance: |
|33: 0.8% |
|Wow & Flutter: |
|33: 0.29% |
|Platter: ||300mm Plywood with Felt Mat |
|Main Bearing: ||Stainless Steel in Bronze Bushing |
|Effective Tonearm Length: ||8.6" (218.5mm) Aluminium |
|Effective Tonearm Mass: ||8.0g |
|Overhang: ||22.0mm |
|Counterweight: ||For Cartridges Weighing 3 - 5.5g |
|Tracking Force Range: ||0 - 25mN (Set at 18mN for OM 5E) |
|Power Consumption: ||4.5W max. |
|Dimensions (W x H x D): ||415 x 118 x 334mm |
|Weight: ||5kg (net.) |
Speaker Box 5 Bundle
As the Juke Box E relies on a pair of external speakers for true hi-fi stereo sound performance, Henley Audio are offering a special bundle for UK consumers. The Juke Box E / Speaker Box 5 Bundle includes a set of speakers with the turntable – just add your preferred cables.
The Speaker Box 5 are a compact, high-fidelity loudspeaker with a 5” woofer and 1” tweeter. Finished in a matching high-gloss finish for the Juke Box E, they offer the ultimate in convenience, sound and design. For the absolute best performance when using the speakers on the same surface as the turntable, we also recommend the use of Damp-IT isolation feet, placed underneath the speaker body.
Premium turntable with integrated amplifier built-in
Simple set-up and operation
Turntable, Bluetooth and Line inputs
High-contrast display on top-panel
Control volume and input with built-in digital potentiometer
Control all inputs and more advanced features with supplied remote control
50W per-channel output (4Ω)
Phono and Line outputs
Premium belt-drive turntable with manual speed change
8.6" aluminium tonearm with sapphire bearings
Pre-adjusted tracking force and anti-skating force
Ortofon OM 5E cartridge included
Low-vibration synchronous motor
Special turntable feet for effective decoupling
Dust cover included
Available in High-Gloss Black, Red or White
Optionally available with matching Speaker Box 5 speakers
