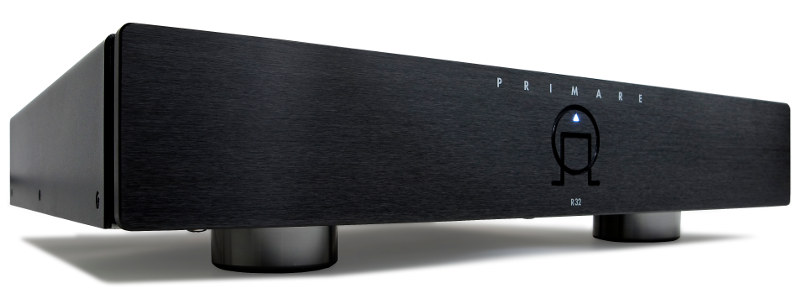

Primare R32 MM/MC Phonostage
If you cherish your vinyl and want to hear the most from it, the R32 MM-MC amplifier provides the ideal interface between the low-level output of a cartridge and the line-level inputs of your hi-fi system.
Having a standard component width rather than the ‘midi’ size of its R20 predecessor, the R32 is easier to install and matches other Primare components for a uniform system look. Its larger chassis also benefits circuit layout, allowing newly upgraded and highly sensitive signal components to be better isolated from an improved power supply, resulting in cleaner sound and greater fidelity.
Gold Plated Connectors, Teflon insulation
Relay controlled mute circuit for silent power on and off.
Dimensions(wxdxh): 430 x 380 x 95mm
Weight: 8.5 kg
Available in Black or Titanium
Inputs: 1 pair RCA
Outputs: 1 pair RCA
Input impedance 10, 20, 50, 100, 200, 500 ohms and 47 kohms
Output Impedance 100 ohms
Gain MM 41.5dB, MM with internal jumper 46.5dB, MC 62dB
Signal to Noise 20Hz – 20kHz unweighted: MM -70dB, MC -60dB
THD+N 20Hz – 20kHz, MM <0.02%, MC <0.05%
Audiophile Dual-Mono Circuit Design
