Naim NAC 202 Pre Amplifier
Zoom  Zoom

Naim NAC 202 Pre Amplifier

£2,050.00
£1,708.33 Exc. VAT |
Out of stock

|

Please note, this product requires collection from our showroom

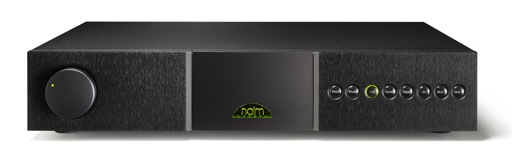

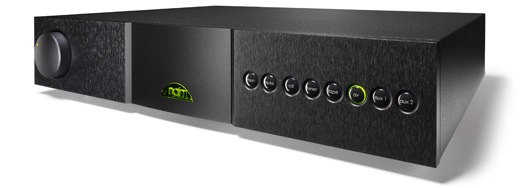

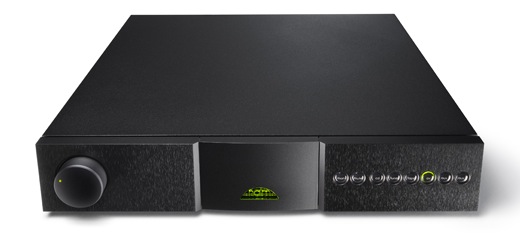

Naim NAC 202 Pre Amplifier

The Naim NAC 202 combines first-class sound quality with flexibility, style and excellent value. Significant improvements in technology led to an entirely new range using new high quality star-earthed circuit boards, combining the classic Naim values of musicality and power with flexibility and value. The Naim NAC 202 may either be powered by a NAP 155 XS or NAP 200 amplifier or significantly upgraded by adding Naim power supplies to independently feed the analogue audio and digital control circuits.

The six inputs on the Naim NAC 202 can be selected directly from either the front panel or with the NARCOM system remote. In addition to the usual DIN inputs, preferred for their superior earthing and impedance matching, two of the inputs can be configured for use with the more common RCA phono connectors, allowing a wide range of non-Naim cables and components to be used. A dedicated unity-gain input is also provided for use with the Naim AV2 processor or similar.

  • Six line-level inputs including two user-configurable versatile (DIN / phono) inputs.
  • User configurable unity-gain AV input.
  • Powered input for use with StageLine or Prefix phono stage.
  • Full infrared remote control. - RC5 input for wired remote control in complex installations.
  • Optional RS232 input/output for use in full home automation systems.
  • Upgradeable with both analogue (FlatCap XS, Hi-Cap, Super-Cap) and digital (NAPSC) power supplies.

Low-resonance circuit boards and anti-vibration, resonance controlling feet minimise the effect of microphonic vibration on the highly sensitive electronic components.

Carefully matched precision rotary potentiometers with precious metal wipers are used to preserve musical integrity and ensure long-term stability. The intelligent balance control combines a high quality motorised potentiometer for the best performance with intelligent circuitry to indicate the centre position.

The NAC 202 features a silent microprocessor that sleeps during listening and controls all aspects of the amplifier including: protection circuits that continuously monitor the power supplies ensuring safe shut down in the event of a power cut; user-configurable 'Smart IR' remote control for simple easy and control of the Naim system.

The NAC 202 introduced a new level of technical and musical performance, along with elegant new styling.

The Naim NAC 202 combines first-class sound quality with flexibility, style and excellent value. Significant improvements in technology led to an entirely new range using new high quality star-earthed circuit boards, combining the classic Naim values of musicality and power with flexibility and value. The Naim NAC 202 may either be powered by a NAP 155 XS or NAP 200 amplifier or significantly upgraded by adding Naim power supplies to independently feed the analogue audio and digital control circuits.

The six inputs on the Naim NAC 202 can be selected directly from either the front panel or with the NARCOM system remote. In addition to the usual DIN inputs, preferred for their superior earthing and impedance matching, two of the inputs can be configured for use with the more common RCA phono connectors, allowing a wide range of non-Naim cables and components to be used. A dedicated unity-gain input is also provided for use with the Naim AV2 processor or similar.

  • Six line-level inputs including two user-configurable versatile (DIN / phono) inputs.
  • User configurable unity-gain AV input.
  • Powered input for use with StageLine or Prefix phono stage.
  • Full infrared remote control. - RC5 input for wired remote control in complex installations.
  • Optional RS232 input/output for use in full home automation systems.
  • Upgradeable with both analogue (FlatCap XS, Hi-Cap, Super-Cap) and digital (NAPSC) power supplies.

Low-resonance circuit boards and anti-vibration, resonance controlling feet minimise the effect of microphonic vibration on the highly sensitive electronic components.

Carefully matched precision rotary potentiometers with precious metal wipers are used to preserve musical integrity and ensure long-term stability. The intelligent balance control combines a high quality motorised potentiometer for the best performance with intelligent circuitry to indicate the centre position.

The NAC 202 features a silent microprocessor that sleeps during listening and controls all aspects of the amplifier including: protection circuits that continuously monitor the power supplies ensuring safe shut down in the event of a power cut; user-configurable 'Smart IR' remote control for simple easy and control of the Naim system.

The NAC 202 introduced a new level of technical and musical performance, along with elegant new styling.

    AUDIO INPUTS
    Analogue Inputs  4 x DIN, 2 x DIN, RCA
    Input Sensitivity  75mV
    Input Impedance 47kΩ
    Other Inputs  AV input configurable for unity gain
    AUDIO OUTPUTS
    Analogue Outputs  2 x variable (DIN), 1 x fixed (RCA)
    Line Outputs Fixed (level)  75mV, 600Ω
    Line Outputs Variable (level)  775mV
    Output Impedance <50Ω
    Minimum Load Impedance 10kΩ
    Power Outputs Naim phono amplifier
    UPGRADES
    Power Supply NAPSC
    CONTROL
    Infra Red  RC5
    Remote Input  RCA on rear (RC5)
    RS232 optional (DE9 female)
    POWER
    Supply Voltage 24V
    Power Supply Options  NAP 155 XS, NAP 200, FlatCap XS, HiCap, SuperCap
    PHYSICAL
    Dimensions 87 x 432 x 314mm (H x W x D)
    Weight 7.0kg
    FINISH
    Front Brushed and black anodised
    Case Black powder coated
