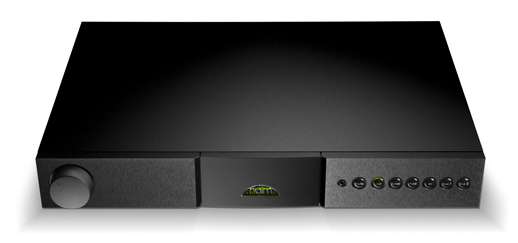

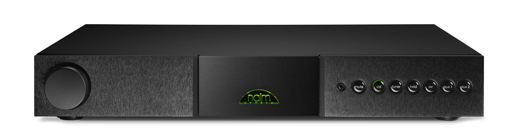

Naim NAC 152 XS Pre Amplifier
Zoom  Zoom

Naim NAC 152 XS Pre Amplifier

£1,175.00
£979.17 Exc. VAT |
Out of stock

|

Please note, this product requires collection from our showroom. Not available to purchase online

Naim NAC 152 XS Pre Amplifier

When a separate preamplifier/power amplifier approach is preferred to an Integrated amplifier such as the NAIT XS, the NAC 152 XS provides the perfect option.

It was conceived around a completely new motherboard design that incorporates advances of both analogue electronics and mechanical decoupling, and its performance is detailed, refined and utterly musical. Versatility is a NAC 152 XS forte too. Five of Its six analogue inputs all offer DIN or phono connection options and it incorporates a front-mounted, auto-switching input socket for convenient MP3 player use.

Power output for a Naim phono preamplifier is also included and a two-stage power supply upgrade regime brings true high-end preamplifier performance easily within reach.

The NAC 152 XS, a replacement for the NAC 122x, is based on its larger brother the NAC 202 and features a hardwired motorised Alps volume control potentiometer delivering better performance and lower noise in use. The six DIN inputs are relay switched, improving performance. Much care in the design has been afforded to making the casework and PCB as low resonance as possible and to isolate the PCB from the environment and hence deleterious vibrations.

The NAC 152 XS features an additional output in addition to the Naim standard DINs. This stereo output on two RCA sockets, is optimised for connection to an active subwoofer, supports the growing use of 2.1 systems. Its rear panel layout is similar to the NAC 202 and hence is Fraim friendly. The NAC 152 XS can be powered from the preamp power outputs of the NAP 155 XS or NAP 200 or can be upgraded by powering it from either a FlatCap XS or HiCap power supply. One of the DIN inputs can supply power to a Naim StageLine outboard phono stage.

When a separate preamplifier/power amplifier approach is preferred to an Integrated amplifier such as the NAIT XS, the NAC 152 XS provides the perfect option.

It was conceived around a completely new motherboard design that incorporates advances of both analogue electronics and mechanical decoupling, and its performance is detailed, refined and utterly musical. Versatility is a NAC 152 XS forte too. Five of Its six analogue inputs all offer DIN or phono connection options and it incorporates a front-mounted, auto-switching input socket for convenient MP3 player use.

Power output for a Naim phono preamplifier is also included and a two-stage power supply upgrade regime brings true high-end preamplifier performance easily within reach.

The NAC 152 XS, a replacement for the NAC 122x, is based on its larger brother the NAC 202 and features a hardwired motorised Alps volume control potentiometer delivering better performance and lower noise in use. The six DIN inputs are relay switched, improving performance. Much care in the design has been afforded to making the casework and PCB as low resonance as possible and to isolate the PCB from the environment and hence deleterious vibrations.

The NAC 152 XS features an additional output in addition to the Naim standard DINs. This stereo output on two RCA sockets, is optimised for connection to an active subwoofer, supports the growing use of 2.1 systems. Its rear panel layout is similar to the NAC 202 and hence is Fraim friendly. The NAC 152 XS can be powered from the preamp power outputs of the NAP 155 XS or NAP 200 or can be upgraded by powering it from either a FlatCap XS or HiCap power supply. One of the DIN inputs can supply power to a Naim StageLine outboard phono stage.

AUDIO INPUTS
Analogue Inputs  5 x DIN, RCA, 1 x DIN, 1 x 3.5mm jack
Input Sensitivity  130mV
Input Impedance 47kΩ
Other Inputs  AV input configurable for unity gain
AUDIO OUTPUTS
Analogue Outputs  2 x variable (DIN), 1 x fixed (RCA)
Line Outputs Fixed (level)  130mV, 600Ω
Line Outputs Variable (level)  775mV rms
Output Impedance main <50Ω, sub <150Ω
Minimum Load Impedance 10kΩ
Power Outputs Naim phono amplifier
Other Outputs  1 x sub (RCA)
CONTROL
Infra Red  RC5
Remote Input  3.5mm jack on rear (RC5)
RS232 optional (DE9 female)
POWER
Supply Voltage 24V
Power Supply Options  NAP 155 XS, NAP 200, FlatCap XS, HiCap, SuperCap
PHYSICAL
Dimensions 70 x 432 x 301mm (H x W x D)
Weight 3.9kg
FINISH
Front Brushed and black anodised
