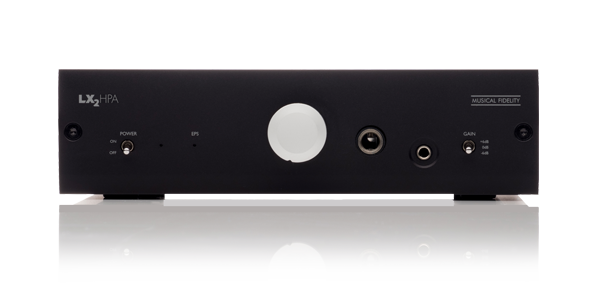

Musical Fidelity LX2-HPA Headphone Amplifier
Musical Fidelity has extensive experience making super headphone amps, the LX2-HPA builds on our decades of experience to deliver a great performer with beautiful, restrained and tasteful aesthetics.
A headphone amplifier is like a small power amp, relative to the load (the headphones) the technical requirements are similar: Excellent load tolerance, high stability margins, low distortion, wide bandwidth, low noise, excellent channel separation.
The LX2-HPA will easily drive any commercially produced headphone. It's high current delivery and excellent stability margins result in completely uncoloured neutral performance.
Distortion at less than 0.0035%, wide band is vanishingly low and certainly inaudible.
Bandwidth extends to about 80kHz and even at 40kHz the distortion remains well below 0.05%. A remarkable achievement.
The outstanding noise ratio of better than 112dB means that the music comes from a true 'black velvet' background field.
Stereo separation is excellent and assures a rock solid imaging experience. Talk about 'adventures in inner space!
The LX2-HPA gives a sensual monitor level listening experience. Completely uncoloured sound delivered with virtually limitless dynamic range from a black velvet background, and perfectly placed spatial imagery.
- Input Impedance: 47KΩ
- Input Sensitivity: 3.0mV
- Total Harmonic Distortion: 0.01%
- Signal / Noise Ratio: >80dB
- Power Requirement: 12 - 24V 100mA Regulated
- RCA Input: 1pr RCA sockets
- RCA Output: 1pr RCA sockets
- Headphone Output (6.3mm): 1 stereo jack socket (6.3mm)
- Headphone Output (3.5mm): 1 stereo jack socket (3.5mm)
- Power Input: DC Jack (1.3mm inner pin, outer diam. 3.5mm
- Length (including terminals) 197mm
- Width 172mm
- Height (including feet) 46.5 mm
- Unit alone: 1.05Kg
- Unit with packing: 1.50Kg
