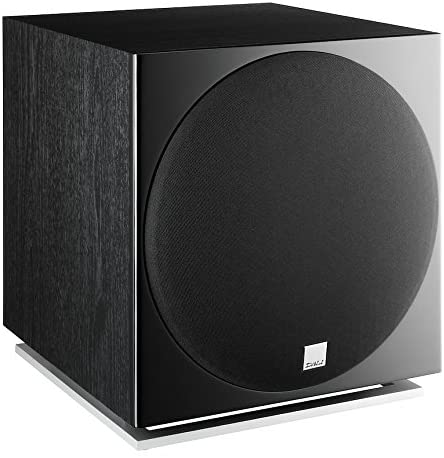

Dali E-12 F Active Subwoofer
Zoom  Zoom

Dali E-12 F Active Subwoofer

£415.83 Exc. VAT |


Please note this item can only SHIPPED TO THE UK


Dali E-12 F Active Subwoofer

The launch of the DALI SUB E-12 F marks a new stage of what is possible at this level of subwoofers.

The new subwoofer from DALI features a 12” woofer, capable of moving plenty of air with power and precision. The cone is made from pure aluminium for maximum stiffness and a becoming exterior. Furthermore, the heavy magnet system wields a massive 4-layer, long-stroke voice coil.
All in all, the heavy-duty abilities of this “motor system” ensure that the woofer always follows the signal from the amplifier!

The heart of this subwoofer is the 170W RMS Class D amplifier with a highly linear response. Embracing a classic DALI trademark, it simply acts as a total low frequency extension of your AV system. The result is a powerful, well-balanced bass reproduction and flawless integration with your speakers. In addition, the integrated limiter helps protecting your subwoofer against overloading.

The back plate of SUB E-12 F features controls for volume adjustment, phase, and upper cut-off frequency, while the power on/off function works automatically via signal detection. And with the options for LFE or LINE inputs, this subwoofer easily accompanies any AV set up.

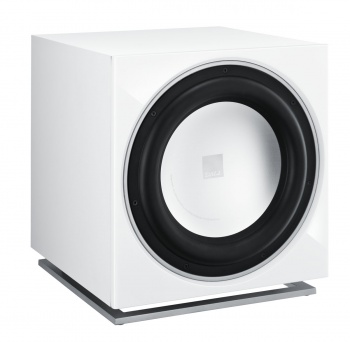

SUB E-12 F is elevated from the floor by an aluminium base, while a down-firing bass port allows positioning directly against the wall. The front grille is mounted by magnets only – and when removed, the visual appearance changes from discreet to extravagant as the pure aluminium cone is revealed.

The DALI SUB E-12 F is recommended as compliment to the new ZENSOR series and is compatible with all DALI loudspeakers as the perfect completion of a DALI surround set up.


Product Series SUBWOOFERS
Speaker Type Subwoofer
Frequency Range (+/-3 dB) [Hz] 28 - 190
Maximum SPL [dB] 112
Crossover Frequency [Hz] 40 - 120
Low Frequency Driver 1 x 12" long stroke  Polymere Aluminimum
Enclosure Type Bass Reflex
Bass Reflex Tuning Frequency [Hz] 36.0
Max. Amplifier Power Output [RMS watt] 220
Continous IEC Power Output [RMS watt] 170
Input Impedance [Ω] 25k
Connection input(s) Mono line level (LFE)
Stereo line level (low pass filtered)
Magnetic Shielding No
Recommended Placement Floor
Near wall or corner
Recommended Distance From Wall [cm] > 5
Functions Crossover Frequency
Phase Switch
Standby (Auto Power) On/Off Switch
Volume (Gain)
Maximum Power Consumption [W] 250
Dimensions With Base (HxWxD) [mm] 370 x 340 x 380
Weight [kg] 14.7
Accessories Included Manual
Rubber Bumpers
Spikes M6
Finish Black Ash Vinyl
Light Walnut Vinyl
White Vinyl
