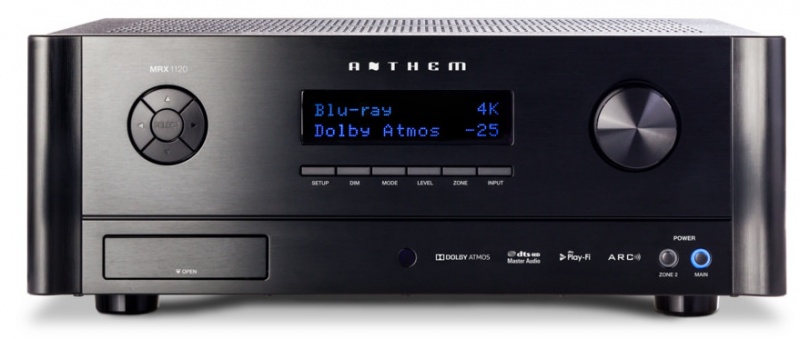

Anthem MRX 1120 AV Receiver
Zoom  Zoom


Anthem MRX 1120 AV Receiver

£4,399.00
£3,665.83 Exc. VAT |


|

Please note, this product requires collection from our showroom. Not available to purchase online.

Anthem MRX 1120 AV Receiver

Separates-Quality Performance in a Gutsy, Feature-Rich AV Receiver

Experience the breathtaking power and multi-channel flexibility of Anthem’s NEW Third Generation MRX Series of AV Receivers.

Anthem’s award-winning Third Generation MRX Series of high-end multi-channel A/V receivers are known the world over for their excellent sound quality, efficient power handling, and the ease with which they integrate into an entertainment system.

The MRX Series is packed with exclusive audio innovations like Anthem Room Correction (ARC) Technology and Advanced Load Monitoring (ALM) Technology, 4K Pass-Through with fast HDMI switching and more.

Why choose an A/V receiver?

Because it’s everything you need to drive a multi-channel home theater or music system in one convenient component. It’s a space-saving, cost-effective alternative to building a system from “separates” (i.e. a preamplifier plus a processor plus a separate external power amplifier).

mrx 1120

The MRX 1120 has an 11.2 Pre-Amp / 11 Amplifier Channel A/V receiver which is Dolby Atmos, DTS:X ready. It has 140 watts per channel continuous power into 8 ohms. It also includes the new ARC (Anthem Room Correction).

The Easy-To-Use Anthem Room Correction Kit Delivers Professional Results In Any Room

Simply put, Anthem Room Correction quickly “corrects” the effects that reflective surfaces such as walls, floors and ceilings have on the sound radiating from a loudspeaker. Removing the effects of these obstacles allows your audio equipment to achieve a more natural sound in any room, as close to the lab standard as possible.

On a more complex level, ARC is a proprietary digital signal processing software that works with a specially-engineered calibration microphone and your PC to quickly and easily optimize audio for your unique listening space. Anthem engineers developed the ARC system while researching how to replicate the audio-lab standard of performance in non-lab environments. This groundbreaking research was conducted in conjunction with the National Research Council of Canada, the Canadian government’s research and technology organization.

Anthem engineers realized that real world listening experiences had little in common with the controlled environment of the audio lab. That’s because even the best loudspeakers are affected by room anomalies like furniture. These obstacles cause standing waves, resonances, and reflections that can color the sound you hear. Imagine the sound waves coming from your speakers as ripples on a water surface. That makes it easy for you to understand how the ripples of sound bounce off any obstruction they encounter. You can immediately see the benefit of removing the obstacles.

ARC digitally compares a room’s acoustic signature to that of the lab standard. It measures the response of each speaker relative to the listening area. Then it uses advanced algorithms to eliminate the negative effects of the obstacles in the room, adjusting response and correcting phase effects. When ARC removes the obstacles, what’s left is the lab standard performance.

New Color Coded Labeling

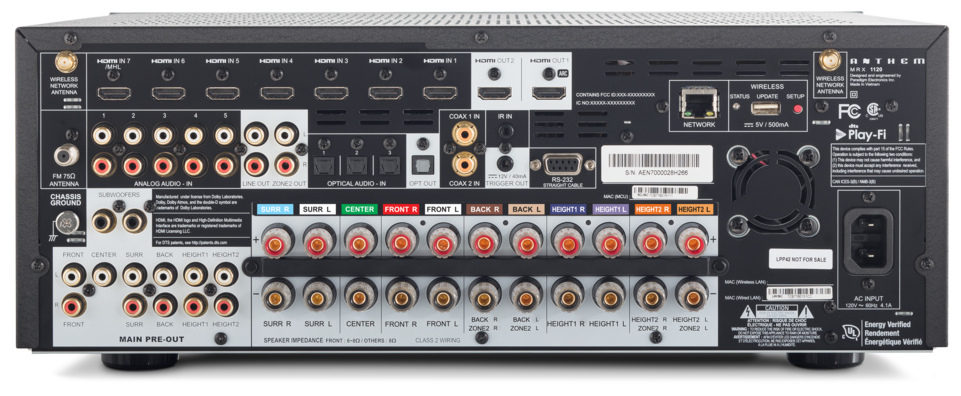

To ensure correct speaker hookups the first time, the MRX Gen 3 Series includes color coded loudspeaker terminals and new color coded labeling above speaker specific terminal pairs.

Features:

  • Dolby Atmos®
  • DTS:X™ Ready
  • ARC™ Anthem Room Correction
  • 4 Speaker Profile Memories
  • Quad Core Digital Signal Processing
  • Two Sub Out Jacks (parallel)
  • Premium 32-bit / 768 kHz Differential-Output D/A Converters
  • Wireless Network Connection
  • DTS Play-Fi® – Local and Streaming
  • HDMI 2.0a
  • HDCP 2.2
  • 4:4:4 Subsampling at 4K60 (18.2 Gbps)
  • High Dynamic Range (HDR)
  • BT.2020 Color Gamut
  • On-Screen Display with 4K 50/60
  • 4K 50/60 Switching
PREAMPLIFIER
Maximum Output (<0.1% THD) 4.2 Vrms, subwoofer channel 5.2 Vrms
Frequency Response (2 Vrms output) 10 Hz — 31 kHz (+0, -0.25 dB)
Frequency Response, Analog-Direct (2 Vrms output) 10 Hz — 48 kHz (+0, -0.25 dB)
THD+N (2 Vrms output) -95 dB
S/N Ratio (2 Vrms output, IEC-A filter) 110 dB
PREAMPLIFIER + AMPLIFIER (1 W OUTPUT)
MRX 1120 / MRX 720 -88 dB channels 1-5, -75 db back/height
MRX 520 -88 dB
MAXIMUM CONTINUOUS OUTPUT (1% THD)
  MRX 1120 MRX 720 MRX 520
Channels 1-5, Two Driven into 8 Ohms 140 W 140 W 100 W
Channels 1-5, Two Driven into 6 Ohms 170 W 170 W 130 W
Remaining Channels, Two Driven into 8 Ohms 60 W 60 W n/a
Remaining Channels, Two Driven into 6 Ohms 75 W 75 W n/a
POWER CONSUMPTION
  MRX 1120 MRX 720 MRX 520
Typical Load 570 W 485 W 365 W
Standby 0.3 W 0.3 W 0.3 W
Standby IP Control Enabled 4.7 W 4.7 W 2.4 W
Standby HDMI Bypass Enabled 8.2 W 8.2 W 5.8 W
DIMENSIONS
Height 6-1/2" (16.5 cm)
Height with Rackmount Kit 4U
Width 17-1/4" (43.9 cm)
Depth (not including power cord) 14-3/4" (37.5 cm)
WEIGHT
MRX 1120 32 lb (14.5 kg)
MRX 720 31 lb (14 kg)
MRX 520 28.2 lb (12.8 kg)
POWER REQUIREMENT
120 V version: In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz.
220-240 V version: In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz.
