Graham Slee Solo Ultra Linear Headphone Amplifier (Ex Demonstration)
Zoom  Zoom

Graham Slee Solo Ultra Linear Headphone Amplifier (Ex Demonstration)

£590.00
£491.67 Exc. VAT |


|

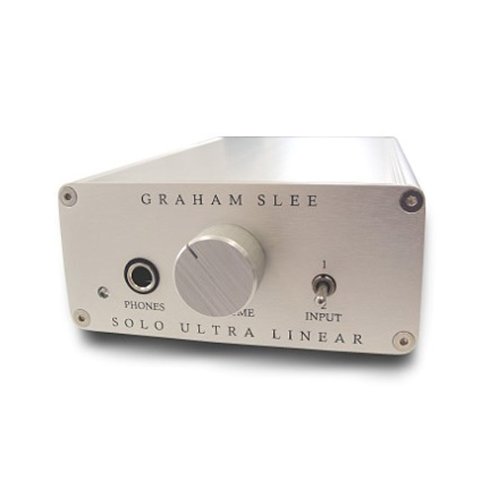

Graham Slee Solo Ultra Linear Headphone Amplifier

Includes Universal Power Supply

The Solo Ultra-Linear headphone amplifier  gives you the sound you always wanted from a headphone amp! A headphone amplifier truly capable of making good headphones deliver a lifelike, dynamic and breathtaking performance with a real out of head three-dimensional stereo sound stage.

The Ultra-Linear voltage amplifier stage gives you the smoothness and warmth of a tube amp, yet with all the precision, fine detail, and punchy sound of the solid state amp it is. Plus, it won't wear out like tubes.

Features

  • Headphone impedance range: 8 to 2,000 Ohms / 16 to 600 Ohms preferred

  • Power output: (rms, both channels fully driven at 1% THD)

  • Frequency response (±0,-3dB) 10Hz - 35kHz

  • Output Stage: Bipolar class AB

  • The Ultra-Linear comes with the PSU 1 Power supply.



Specification

Headphone impedance range: 8 to 2,000 Ohms / 16 to 600 Ohms preferred

Power output: (rms, both channels fully driven at 1% THD)
32 Ohms: 140mW/channel; 600 Ohms: 30mW/channel

Input sensitivity (for specified power output into 32 Ohms): 511mV rms

Input impedance: 37k Ohms at max volume; 50k Ohms at min volume

Distortion: (THD plus noise at 9 o'clock volume control setting (qtr power))
10Hz-20kHz: better than 0.04%; 10Hz-1kHz: better than 0.02%

Frequency response (±0,-3dB) 10Hz - 35kHz

Output noise: (22Hz-22kHz, quasi-peak/un-weighted) -95dB

Channel balance: better than 1dB

Crosstalk: Left to Right -56dB; Input to Input -68dB

Input selector centre-off position: non-shorting; -38dB at max volume with 2V rms input (ref: 1kHz and 10kHz)

Output Stage: Bipolar class AB

Supply voltage: 24V DC unipolar

Size: (approx.) W: 107 x H: 50 x D: 185 (mm) inc. controls
