Atlas dd Duo Integra RCA Interconnects
Zoom  Zoom

Atlas dd Duo Integra RCA Interconnects

£190.00
£158.33 Exc. VAT |


|
Length:

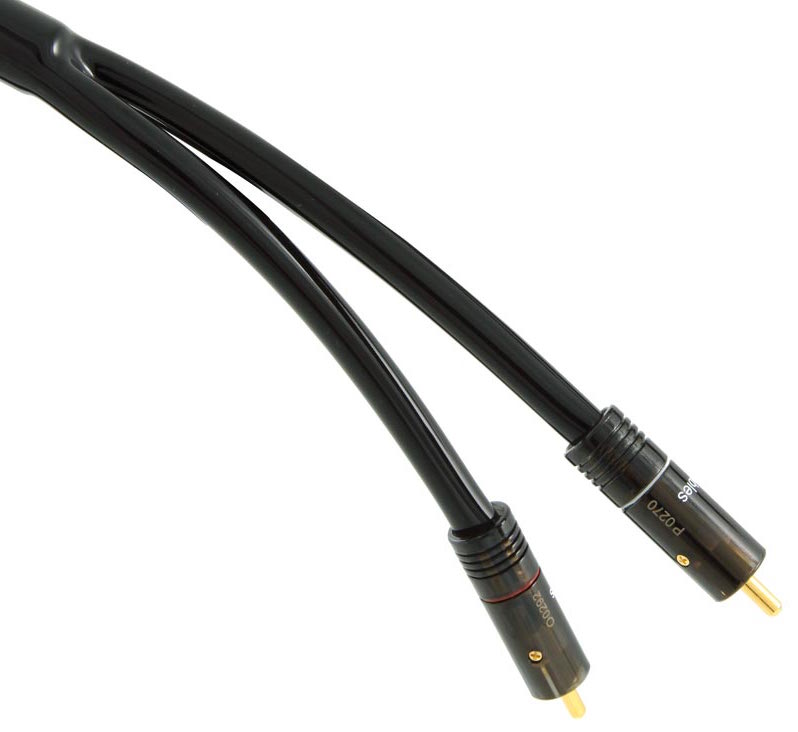

Atlas dd Duo Integra RCA Interconnects

Optimum audio performance via ‘trickle-down’ dd technology.

This recent addition to our popular Hyper family introduces our new ‘Duo’ configuration which uses a ‘balanced core’ topology within a single-shielded outer cover (rather than separate cables for left & right channels).

The Atlas Hyper dd is constructed with four central multi-core conductors of high purity OCC (Ohno Continuous Casting) copper encapsulated within a low-loss foamed Polyethylene dielectric. The cable is terminated with our low-mass solder-free Integra RCA plugs. Hyper dd Duo is the perfect cable for use where space is a premium, such as within equipment cabinets.

Atlas dd (‘dual drain’) system: Normally screened cables suffer from screen distortion when they are prepared for production. (If you've ever wired a plug or connector which uses a screened cable, you've done this yourself, cutting back and probably twisting the screening braid for termination). This distortion of the screen has a measurable impact, effectively changing the impedance and therefore the performance of the cable.

Our ‘dd’ configuration is based on a simplified version of the techniques we developed for our top-of-the-range Mavros and Asimi interconnects. Twin symmetrical drain wires (each attached to 180° segments of the plug) are inserted between a 100% copper/Mylar™ foil and screen. The unique dd system connects the screen effectively to the cable return/plug interface, meaning the cable can be terminated without distorting, twisting or mechanically stressing the precision-laid screen. The benefits are in maintaining a consistent low impedance load to the plug, and a total 360° screening against noise and signal loss caused by RFI (Radio Frequency Interference).

The Hyper range includes DIN & XLR termination options, digital interconnects plus stereo & bi-wire speaker cables.

Specifications:

Contruction Twin twisted pair multicore, dual drain
Material 6n OCC Copper
Dielectric PEF
Screen OFC 94.2% – 252 strands
Capacitance 71.54 pF/m
Inductance 0.542 µH/m
Resistance 0.0239 Ohms/m
VOP 0.682
Outside Diameter 10.0mm

Be the first to Write a Review for this item!
