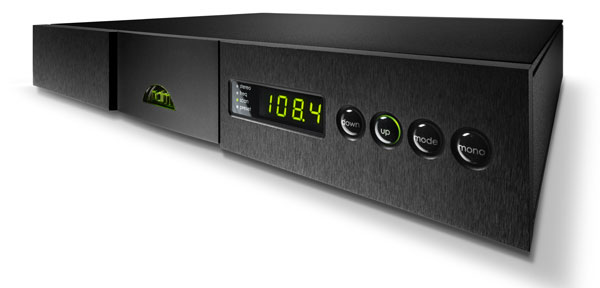

Naim NAT 05 XS FM Tuner

Naim NAT 05 XS Tuner

Naim products are not available to buy online.  Please call us for more information

Apart from the benchmark and matchless ALPS high performance tuner head, the NAT05 XS tuner is a completely new design. The tuner head is compliantly mounted within the aluminium casework and feeds analogue circuitry that benefits enormously from Naim analogue knowhow. FM remains the medium for the highest quality radio transmissions and the NAT05 XS is optimised to exploit FM like no other tuner

And if you want more, the NAT05 XS can be enhanced further through the simple addition of an external FlatCap XS power supply.
Specifications

Audio Outputs                     Analogue via DIN and RCA

Line Output Fixed                600mV at 100% modulation

Maximum Load Impedance  Infinite

Minimum Load Impedance   10 kΩ

Frequency Response           -0.5dB at 12Hz, -3db at 15kHz

THD                                  <0.8%

Signal to Noise Ratio           67dB at 1mV RF input level

Control


Remote Input:                    3.5mm rear panel jack (modulated/demodulated RC5 system)
IR Remote (handheld):       NARCOM 4

Dimensions (H x W x D)      70 x 432 x 301mm

Power


Supply Voltage:                  100-120V, 220-240V, 50 to 60Hz
Power Consumption:           15VA

Physical

Dimensions (mm):              432 x 301 x 70 (W x D x H)
Weight:                              5.5kg
Shipping Weight:                 7.85kg
Shipping Dimensions (mm): 580 x 500 x 200 (W x D x H)

Colour                                Black

Finish                                 Anodised fascia, painted cover
