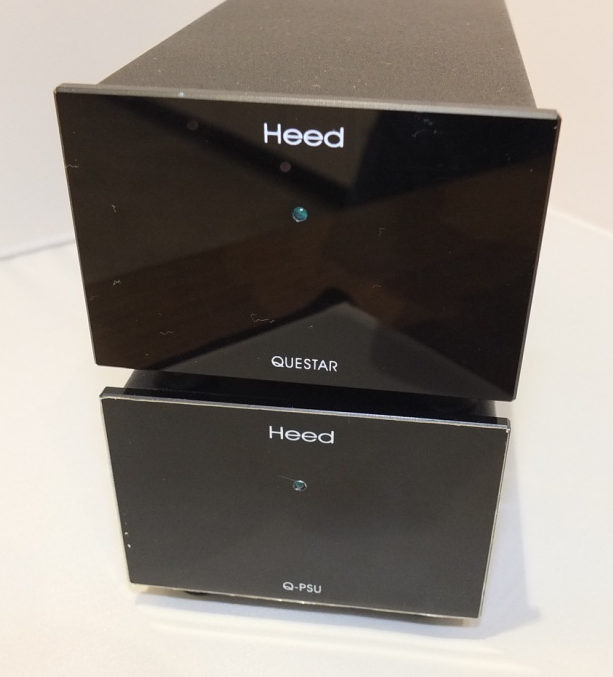

Heed Questar MM Phono Stage with Heed Q-PSU and PSU Cable Ex Demonstration

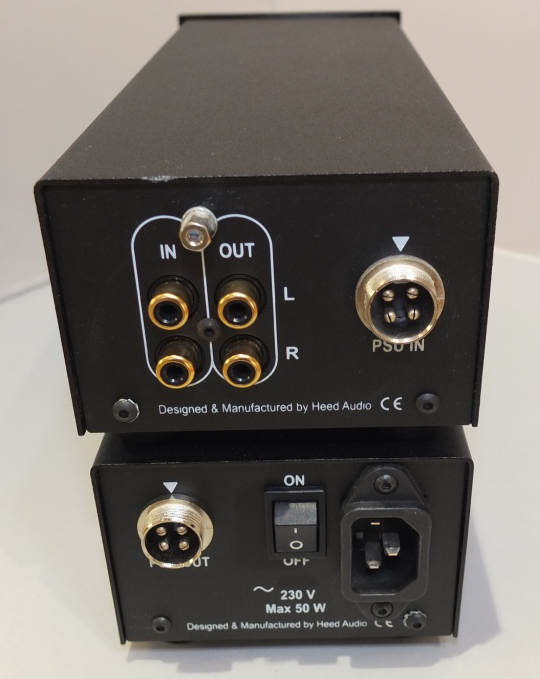

Nice clean condition, mark on rear pictured. Still with plastic wrap on fascia. Includes connecting PSU cable. (Tatty Packaging)
The QUESTARs are destined to be the MVPs (Most Valuable Phonostage) of the Heed analogue range. At first glance, they physically resemble the Pulsar, our previous entry-level MM phono stage, but looks can be deceiving. Under the hood of their hefty, shielded steel chassis beats the heart of our award-winning audiophile Quasar MM/MC phonostage, conveniently divided into neatly-specialized a' la carte portions.
The QUESTAR MM incorporates the Quasar’s unsurpassed MM circuitry.
The internal construction of the QUESTARs meets the most critical high-end standards in every respect. The amplifier employs an entirely dual-mono configuration and uses a two-stage - passive/active - RIAA equalisation. Gain adjustment has been optimised for maximum headroom and highest signal-to-noise ratio. Component parts are selected to exacting tolerances matching those of our flagship Quasar.
The QUESTARs are suitable for any line-level amplifier input, and can easily drive virtually any length of interconnect. There is no internal wiring or binding, and all high-current parts of the circuit are shielded. Both models feature gold-plated RCA terminals soldered directly onto the PCB, limiting all signal paths to a bare minimum.
The QUESTARs utilise an external “wall-wart” power supply to avoid undesirable electro-magnetic interference within the chassis, distinguishing them from their predecessor, the all-in-one-box Pulsar. Sonic performance can be even further enhanced by upgrading to the Quasar’s substantial separate box PSU, constructed around a massive 60 VA toroidal transformer with low-density magnetic field and minimal dispersion. With substantial 40,000 µF capacitor filtering, the Quasar PSU can feed the QUESTAR’S circuitry with the kind of super-clean current usually delivered only by battery-based supplies, even with extreme dynamic swings.
|Technical specifications || |
|Input: || |
3 mV/47 kOhm (Questar MM)
|Frequency range: ||20 Hz - 20 kHz/± 0,3 dB |
|Gain: || |
42 dB (Questar MM)
|Signal/noise ratio: || |
82 dB (Questar MM)
|Headroom: || |
20 dB (Questar MM)
|Channel separation: ||50 dB (1 kHz) |
Heed Q-PSU MkII Power Supply
The Heed Audio Q-PSU regulated outboard power supply (which is included with Quasar Phono Stage) is also available as an optional upgrade for the Heed Questar MM, Heed Questar MC & Heed Dactilus product range.
All of the above Heed products will have increased performance when the Heed Q-PSU power supply has been added.
Just when you thought you may have to buy a new phono stage or DAC there are large performance increases to be gain just by adding this little box!
