Chord Electronics Chordette Dual MC Phono Stage

Chord Electronics Dual MC Phono Stage

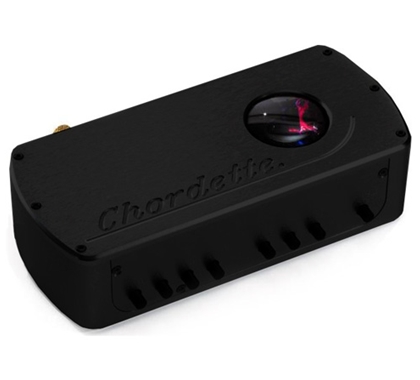

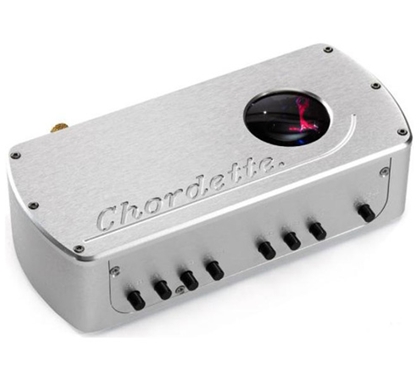

Available in Black or Silver

We can offer customers wishing to upgrade their existing Chord equipment generous trade in allowances. Other manufacturers equipment is also considered.

The Chordette Dual has been designed to provide the high level of boost amplification and frequency shaping necessary to match the low level output from high quality moving coil cartridges.

The Dual features selectable input impedance and gain options that allow perfect matching of the cartridge to reveal the true potential of vinyl recordings. The advanced circuitry gives superior performance and applies the appropriate RIAA equalisation resulting in the enhanced reproduction of any record collection. The addition of a Rausch slope filter to remove rumble from low frequency music helps to further improve the listening experience.

Additionally there is an onboard analogue to digital converter with USB output to enable any vinyl recording to be archived to a PC or MAC thus preserving a digital copy. An optical TOSLink output provides a digital monitor to play back any recorded material stored on the computer via an external digital to analogue converter. This enables you to listen to a true representation of the recording and overcome any limitations of the onboard sound hardware within the computer

Specifications

INPUT IMPEDANCE:  30 ohms – 47K ohms, 50pF – 200pF

INPUT NOISE: 1.1nV/Hz

MAX OUTPUT VOLTAGE: 10V rms

EQUALISATION: 0dBV – 75dBV RIAA curve

GAIN RANGE: 60dBV,65dBV,70dBV,75dBV

RUMBLE FILTER: -24dB per octave below 50Hz

INPUT: 1 x RCA Phono Pair

OUTPUT: 1 x USB ( B type ), 1 x RCA Phono pair, 1 x optical TOSLink monitor

USB ADC OUTPUT: 44/48KHz, USB 2.0 Compliant

POWER SUPPLY: 12V 3A 2.1mm connector. Centre Pin Positive. 100V – 240V 50/60Hz 1A wall adapter supplied

DIMENSIONS IN MM: 160 x 70 x 40mm (Width x Height x Depth)

WEIGHT: 0.4Kg
