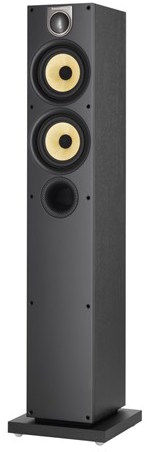

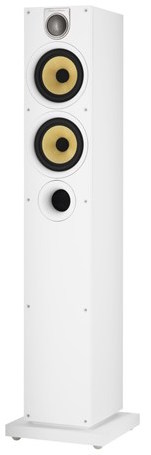

Bowers & Wilkins 600 Series 684 S2 Loudspeakers
Zoom  Zoom

Bowers & Wilkins 600 Series 684 S2 Loudspeakers

Please note, this product requires collection from our showroom. Not available to purchase online

£665.83 Exc. VAT |


Bowers and Wilkins 600 Series 684 S2 Loudspeaker

Room-filling sound without a room-filling speaker cabinet. Slimmer than ever before, the 684 S2 offers an amazing combination of floorstander power, audio performance and unbeatable value.

Switching to 5-inch bass/midrange drivers from the previous 6.5-inch cones, means the 684 S2 is now significantly slimmer than its predecessor, with simultaneously improved audio performance, thanks to Bowers & Wilkins innovation. The two Kevlar cone drivers benefit from smaller voice coils to increase sensitivity.

The 5-inch drivers now also feature Anti-Resonance Plug dustcaps, technology taken from our high-end PM1 speakers, that improve pistonic movement inside the voice coil. This helps to deliver amazingly distortion-free midrange performance, all in a smaller space.

As well as slimmer, improved driver performance, the 684 S2 also features a Decoupled Double Dome tweeter. Double dome technology, brought across from the CM10, increases tweeter rigidity for a more precise sound, while the tweeter sits in a gel-filled cavity, decoupled from the surrounding cabinet - which removes resonances and vibrations, for a more natural, spacious sound.



Woven Kevlar
Crossover Tuning
Nautilus Tapering Tube
Technical features Decoupled Double Dome aluminium tweeter with Nautilus™ tube loading
Kevlar® brand fibre cone FST™ midrange driver
Dual-layer aluminium cone bass driver
Description 3-way vented-box system
Drive units 1x ø25mm (1 in) aluminium dome high-frequency
1x ø150mm (6 in) woven Kevlar® cone FST™ midrange
2x ø165mm (6.5 in) aluminium cone bass
Frequency range -6dB at 30Hz and 50kHz
Frequency response 52Hz - 22kHz ±3dB on reference axis
Dispersion Within 2dB of reference response
Horizontal: over 60º arc
Vertical: over 10º arc
Sensitivity 89dB spl (2.83V, 1m)
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m)
<1% 95Hz - 22kHz
<0.5% 120Hz - 20kHz
Nominal impedance 8Ω (minimum 3.0Ω)
Crossover frequencies 400Hz, 4kHz
Recommended amplifier power 25W - 200W into 8Ω on unclipped programme
Max. recommended cable impedance 0.1Ω
Dimensions Height: 985mm (38.8 in) cabinet only
Width: 190mm (7.5 in) cabinet only
Depth: 364mm (14.3 in)
Net weight 27.2kg (59.7 lb)
Finishes Black Ash
